Redstar's Comprehensive Multi-Tiered Surge Protection System

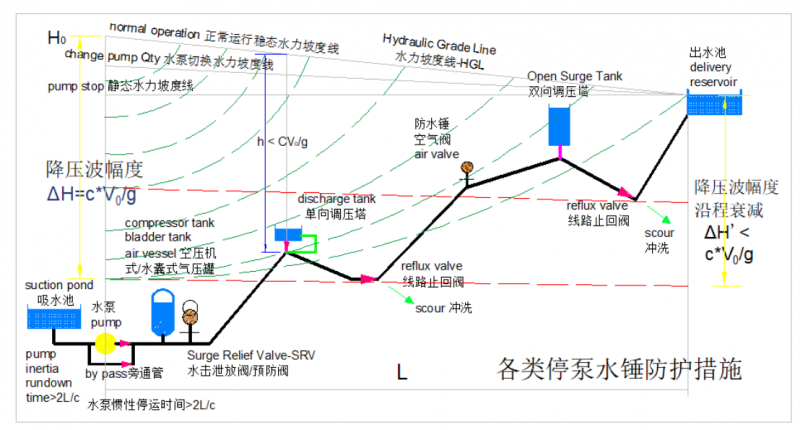

Pressurized pipeline networks require a robust, synergistic defense strategy to eliminate dangerous transient pressures. Anhui Redstar Valve Co., Ltd. delivers an optimized, integrated solution through five core technical measures:

1) Proactive Prevention at Source: Deploying Zero-Velocity Check Valves to ensure complete closure before flow reversal, eliminating or minimizing valve-closing water hammer;

2) Overpressure Relief (Positive Surge Protection): Utilizing Surge Anticipation & Relief Valves to strategically discharge water and instantly lower high-pressure waves;

3) Dynamic Volume Compensation (Negative Surge Protection): Implementing Hydro-Pneumatic Surge Tanks as the primary defense to rapidly inject water and prevent column separation during transient vacuum states;

4) Localized Pipeline Ventilation & Mitigation: Deploying a precision matrix of Anti-Water Hammer Air Valves, Air-Inlet & Micro-Release Valves, Three-Orifice Air Valves, and Micro-Air Release Valves for local, high-responsiveness negative surge protection along the transmission line;

5) Sectional Peak Protection & Cost Optimization: Installing water-replenishment or air-induction auxiliary surge protection devices at critical high-point nodes along the route. This shortens the wave propagation distance and transient phase, significantly scales down the required capacity of the main surge tanks at the pumping station, and sharply reduces the overall project safety budget.
